Specs:
- Input: 120 VAC, 60 Hz, 35 VA
- Output Voltage: 6 kV RMS, 20kV Peak
- Output Current: 35 mA RMS
- Secondary Mid-point Ground Ambient Operating Temperature: -20° to 150°F
- Storage Temperature: -40° to 150°F
- BECKETT 51827U IGNITER WAYNE E (SIDE MOUNT)

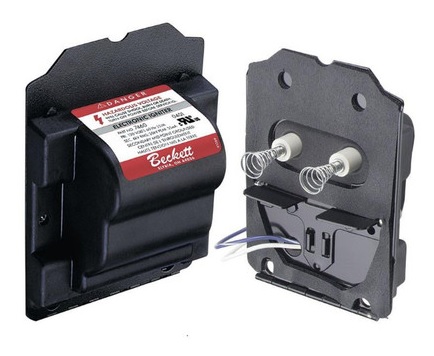

The Beckett Electronic Oil Igniter is UL recognized in the USA and Canada. It is designed to provide a quick and efficient ignition. This igniter fits most baseplates.
____________________________________________________________________________________
Features:
____________________________________________________________________________________
Features:
- 20 kV peak rating guarantees quick and efficient ignition.
- Small size and lightweight (approx. 1.1 lbs.).
- A vacuum encapsulation process using a synthetic resin provides resistance to moisture and excellent heat dissipation and electrical insulation.
- Case material is a high-temperature thermoplastic that provides high impact strength and scratch resistance, and is impenetrable to most chemicals.

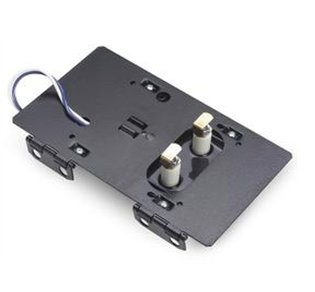

- Adapts to multiple baseplates–making it the most versatile unit on the market…it will also fit on many other vendors’ transformer baseplates.
- Case design has ‘breakout’ sections at the rear and side for lead wire exit and a hood to neatly cover and protect these wires where required.
